Fully Automatic Two Colors Flexo Printing Slotting And Die Cutting Machine PRY-2090

Name: Fully Automatic Two Colors Flexo Printing Slotting And Die Cutting Machine PRY2090
Brand: PRINTYOUNG
Price: 30000 USD

China Fully Automatic Two Colors Flexo Printing Slotting And Die Cutting Machine PRY-2090 wholesale

Brand Name : PRINTYOUNG

Model Number : PRY-2090

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 30000 Set

Payment Terms : T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 60 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Applicable Industries : Manufacturing Plant

Showroom Location : Egypt, Italy, Morocco, Algeria, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Condition : New

Warranty : 1 Year

Automatic Grade : Full Automatic

Maximum Sheet Size : 2000 * 900 mm

Minimum Sheet Size : 650 * 300 mm

Min Length : 260 mm

Min Width : 60 mm

Maximum Speed : 100 m/min

Main Motor : 15.5 kw

Printing Precision : ± 0.5

Die Cutting Precision : ± 0.75

Contact Now

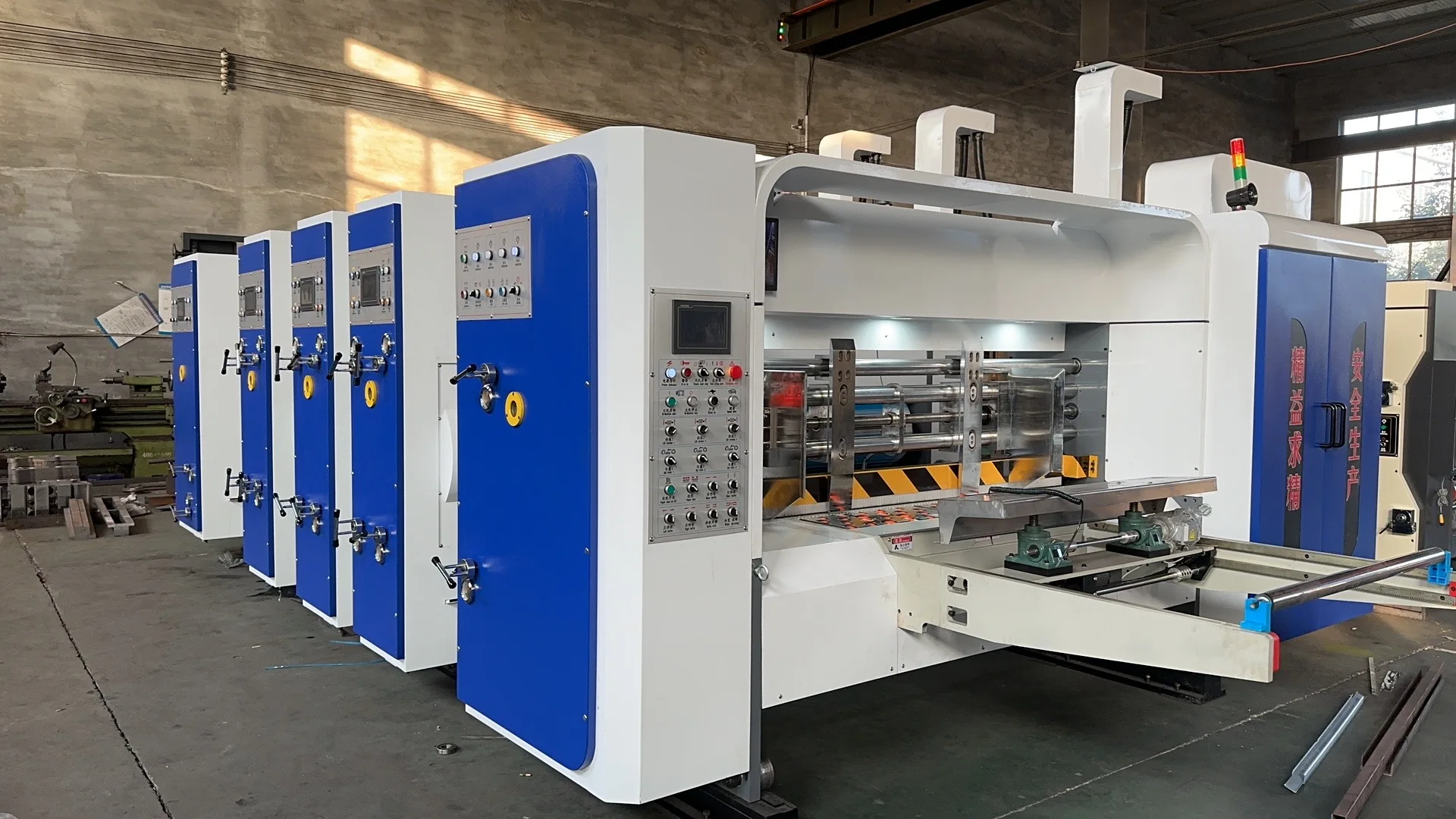

PRY-2090 Printing Slotting and Die Cutting Machine

Fully Automatic Two Colors Flexo Printing Slotting And Die Cutting Machine PRY-2090

Features

The product can complete the cardboard printing,cutting,indentation,trimming,grooving,die cutting and other processes at one time.The whole machine is convenient,fast and flexible. Transmission gear adopts 40-60 Cr high quality alloy steel,the material bureaucratizing,and the main drive gear and drive shaft adopt bond free connection mode to enlarge the virtual position,eliminate the center wear,maintain long life overprinting precision;the whole machine adopts electric split,pneumatic lock,single combination,the machine has accurate color,exquisite printing pattern,convenient use and maintenance,high degree of automation

Technical Parameters

PRY-2090 Printing Slotting and Die Cutting Machine
Maximum Sheet Size	2000 × 900 mm
Minimum Sheet Size	650 × 300 mm
Min Length	260 mm
Min Width	60 mm
Maximum Speed	100 m/min
Main Motor	15.5 kw
Printing Precision	± 0.5
Die Cutting Precision	± 0.75

Configuration

Machine Clutch

*The electric control machine is attached with the alarm bell,and continues to sound the bell to ensure the safety of operators.
*Air-pressure-type interlocking device.
The host motor starts the protection device,and the main machine is not running when the whole machine is not locked.

Send Paper Roller

*The outer diameter of the feeding roller is Ø136mm,solid steel,and balance correction.
*The outer diameter of the paper roller is Ø136mm,coated with hard chromium.
*The paper roller clearance dial is manually adjusted with the adjustment range of 1.2~12mm.

Printing Roller(Edition Roller)

*Outer diameter is Ø300mm(including the outer diameter dimension).
*Grinding on the surface of the steel pipe,coated with hard chromium.
*Do the balance correction,and run smoothly.
*Ratchet fixed reel shaft.
*Full plate slot,10mm 3mm pad.
*With a quick plate changing device,loading and unloading printing plate is convenient and fast,equipped with a foot switch electric control positive and reverse.

Printing Roller

*The outer diameter is a Ø136mm wall thickness of 18mm.
*Grinding on the surface of the steel pipe,coated with hard chromium.
*Do the balance correction,and run smoothly.
*The printing roller clearance dial shall manually adjust the adjustment range of 1.5~12mm.

Send Paper Up and Down Roller

*Upper roller:the outer diameter is Ø86mm thick wall 18mm steel pipe,with two outer diameter Ø120mm paper ring self-locking type.
*Lower roller:outer diameter of Ø136mm thick wall 18mm steel pipe,surface grinding,hard chromium plating.
*The paper roller clearance dial is manually adjusted with the adjustment range of 1.2~12mm.

Net Print Roll

*The outer diameter is the Ø156mm.The wall thickness is 22mm.
*The surface of the steel pipe grinding,pressing the mesh pattern,plating hard chromium.
*Do the balance correction,and run smoothly.
*The number of mesh items is 220 in the first group and 240 items in the second group.
*Cooperate with the pneumatic automatic lifting device of the paper delivery system (contact between the mesh roller drops and the printing plate,and when the mesh roller rises and the printing plate separate when the paper delivery is stopped).
*Mesh roller with wedge type beyond the clutch,uniform ink,ink washing is convenient and fast.

Phase Adjustment Mechanism

*Planetary gear construction.
*The printed phase is controlled by phasing instrument and electric digital 360° adjustment.(Operation and stop can be adjusted)
*Manually adjust the lateral position of the roll,adjust the distance ± 7.5mm.

Ink Circulation

*Air pressure diaphragm pump,stable ink supply,simple operation and maintenance.
*Ink filter net,filter impurities,ink separation.

Printing Phase Fixing Device

When the machine is separated or adjusted in phase,the brake mechanism limits the rotation of the machine and keeps the original gear position fixed point.

Main Transmission Gear

*The material is: 60 Cr high quality alloy steel,carburizing quenching processing.
*Level 7 accuracy (in the same level as the automobile transmission box gear) smooth operation,low noise,hardness HRC 58 ~ 62,long life,basically will not wear within 10 years, can achieve long-term printing accuracy.

Keyless Connection Ring

The use of tightening key connection,can make the shaft and gear complete seamless connection,in the large torque when there is no gap,installation and maintenance is more convenient,can make the long-term transmission accuracy is high,to ensure the printing cover.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
